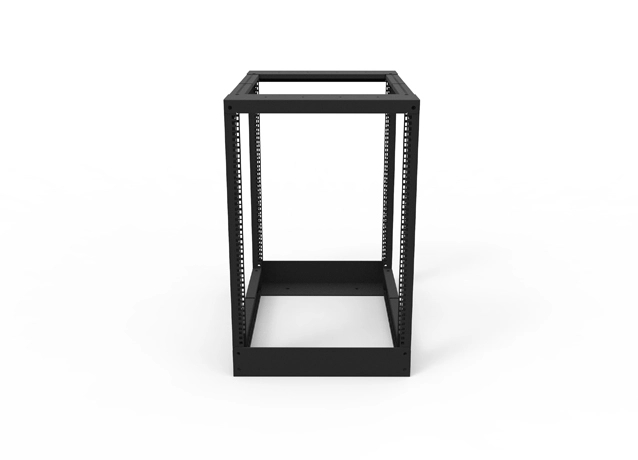

RLA series open rack features full open-frame structure without front/rear doors and standard 19-inch mounting rails, available from 15U to 42U height. Optional vertical cable management trays can be matched for integrated cabling. Fully open design brings unobstructed access for equipment installation, wiring and maintenance, optimized material design reduces overall procurement cost with flexible floor-standing installation. Widely deployed in open data center, computer room and enterprise equipment room; excellent natural ventilation avoids overheat failure, while optional cable trays tidy up all patch cords efficiently.
Standard 19 inch width.
12-42U height are optional.

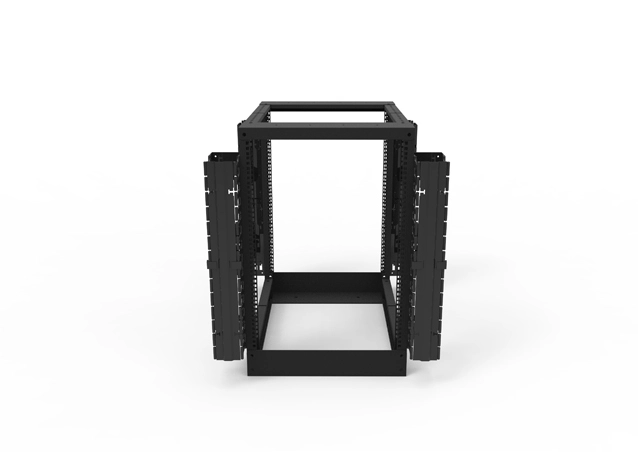

Optional vertical cable trough for cable management.
PC position black label.
6063 aluminum profile column.
Adjustable depth of 764-1121mm.
4mm high-strength bottom plate.
High quality sheet metal process and mist surface coating spraying.
| Model | RLA415 open rack |
| Available U Height | Optional 15U / 22U / 27U / 32U / 37U / 42U |
| Mount Standard | 19-inch international standard mounting upright |
| Main Material | Heavy-duty SPCC cold rolled steel |
| Surface Treatment | Black matte anti-rust electrostatic spray |
| Matching Accessory | Detachable vertical cable tray for optional assembly |
| Installation Mode | Floor fixed mounting |
| Rated Static Load | Max 600kg uniform bearing capacity |
| Ventilation Feature | Full open frame for natural air circulation |
| Compliance Standard | Conforms to IEC61587, TIA/EIA-310-D, matching mainstream open rack industry specifications |
