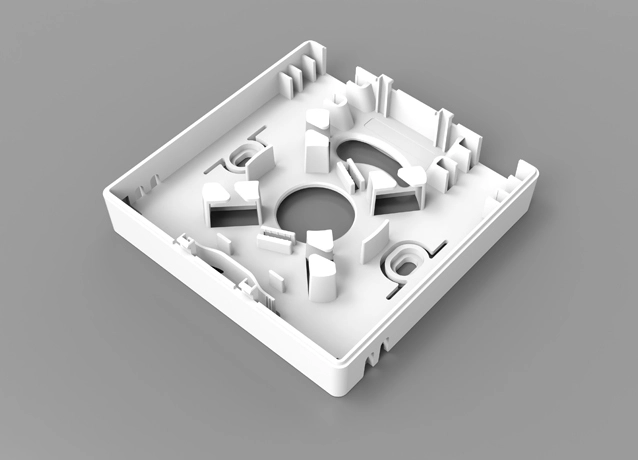

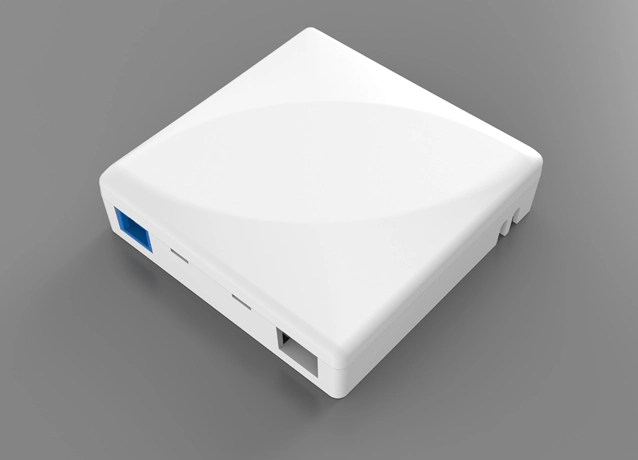

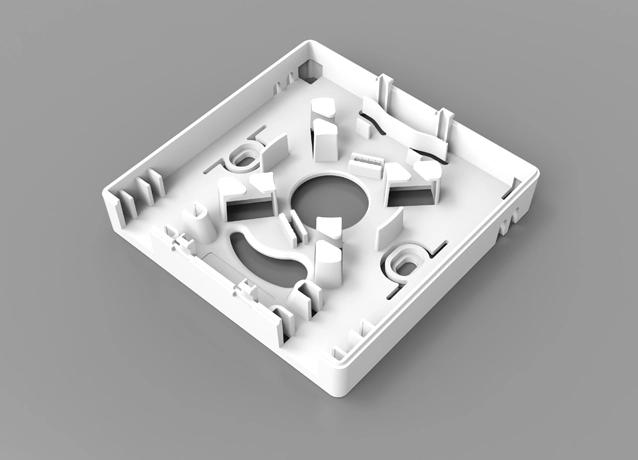

This standard 86-type 2-core fiber outlet box adopts an all-in-one structural design that integrates fiber fixing, stripping, splicing protection and excess fiber storage, featuring a slim and compact body with flexible wall-mounted and desktop installation options. Equipped with professional routing channels to maintain the standard fiber bend radius and manufactured with high-grade UL 94 V-0 flame-retardant ABS material, it fully complies with IEC, ITU-T and other relevant industry standards, supports mainstream SC/LC fiber interfaces and works stably under wide temperature and humidity ranges. These features greatly simplify on-site deployment and maintenance, effectively prevent fiber damage and signal attenuation, deliver excellent durability and safety, and serve as a reliable, cost-effective terminal solution for FTTH, FTTO and FTTD indoor fiber cabling systems.
Excellent exterior design, lightweight box, and convenient to use.
Using ABS material, good airtightness, dustproof.
Mainly used indoors, at home, or in work areas to achieve desktop to desktop wiring solutions.
Suitable for 2 SC single core or LC dual core adapters.
| Fiber Capacity | 2 cores (single-mode/multimode compatible) |
| Dimension | 86×86×25mm, standard 86-type size |
| Core Functions | Integrated fiber fixing, stripping, splicing protection, and surplus fiber storage |
| Bend Radius | ≥30mm, compliant with IEC 60793-1-1 |
| Applications | FTTH, FTTO, FTTD (ITU-T G.984/G.988 compliant) |
| Material | Flame-retardant ABS plastic (UL 94 V-0 rated) |
| Installation | Wall-mounted or desktop use |
| Interface | Compatible with SC/LC adapters (IEC 61754-4/-7 compliant) |
| Operating Temperature | -10℃ ~ +60℃ |
| Humidity | 5% ~ 95% RH (non-condensing) |
