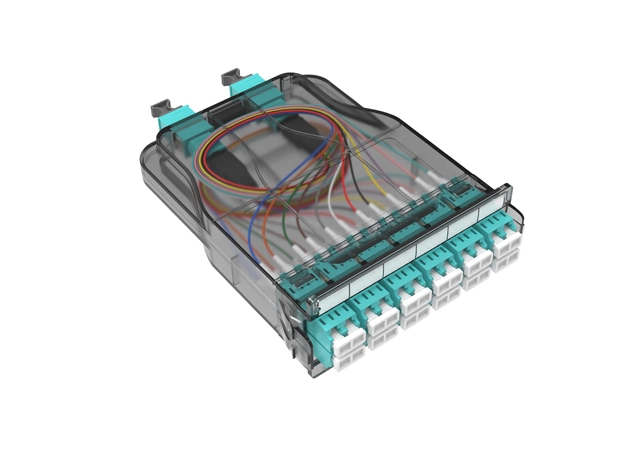

24 Cores MPO Module Box

Name: 24 Cores MPO Module Box
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

MPO/MTP pre terminated products are widely used in high-density data centers due to their high density, plug and play, and high flexibility. The FM24MC pre terminated module box of OTRANS is the SM4M1/FM4M1/FM12M3/FM16M4 universal module box.

Get a Quote >

The Features of 24 Cores MPO Module Box

High density MPO pre-terminated application

Semi-transparent material is optional, visible inner situation

Lightweight design, full weight 70g

Easy plug and play with one hand

Tail shoot design make MPO adapters fit tightly

Customized color and LOGO is available

Complies with EN 50173-5/TIA942 standard

Parameter List of 24 Cores MPO Module Box

24 Cores MPO Module Box
Model Number	FM24MC
Dimension	101mm152.2mm33mm
Port	24
Material	PC/ABS
Work Temperature	-40°C~+70°C
Relative Humidity	≤95%(+40°C)
Fire Rating	UL94-V2
IL	≤ 0.35dB
Insertion Durability	≥1000Times
