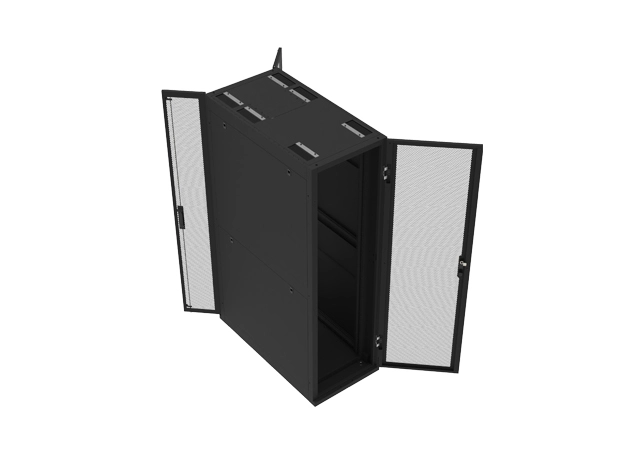

The cabinet door panel can be designed with hexagonal openings, with a ventilation rate of 77.85%.

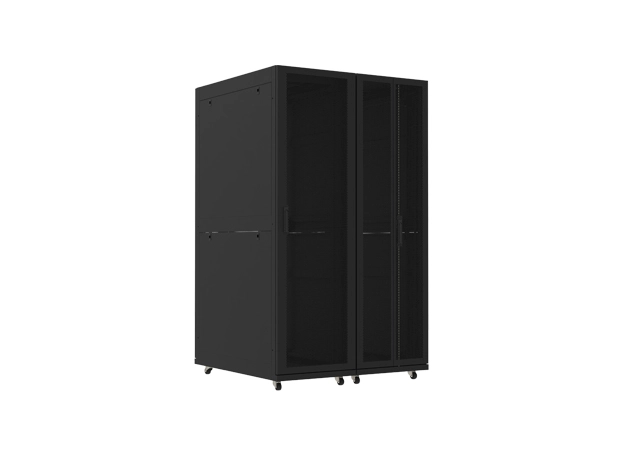

Multiple cable options are available for selection, allowing for parallel connection of multiple cabinets.
Bottom frame with reinforced load-bearing support plate, capable of bearing up to 1600KG.
| Model Number | GT | |||||
| Material | SPCC Cold Rolled Steel | |||||
| Colour | Black（RAL9005） | |||||
| Working Temperature | -20℃~+45℃ | |||||
| Relative Humidity | 5%~85%RH（25℃±5℃） | |||||
| Pressure | 65KPa~110Kpa | |||||
| Vertical tilt angle | ≤5% | |||||
| No. | Model | Width（mm） | Depth（mm） | Using Depth（mm） | HU（U） | Package size（mm） |
| 01 | GT3.6042 | 600 | 1000 | 700 | 42 | 655*1055*2100 |
| 02 | GT3.6142 | 1100 | 760 | 655*1155*2100 | ||
| 03 | GT3.6242 | 1200 | 760 | 655*1255*2100 | ||
| 04 | GT3.6047 | 1000 | 700 | 47 | 655*1055*2300 | |
| 05 | GT3.6147 | 1100 | 760 | 655*1155*2300 | ||
| 06 | GT3.6247 | 1200 | 760 | 655*1255*2300 | ||
| 07 | GT3.8042 | 800 | 1000 | 700 | 42 | 655*1055*2100 |
| 08 | GT3.8142 | 1100 | 760 | 655*1155*2100 | ||
| 09 | GT3.8242 | 1200 | 760 | 655*1255*2100 | ||
| 10 | GT3.8047 | 1000 | 700 | 47 | 655*1055*2300 | |
| 11 | GT3.8147 | 1100 | 760 | 655*1155*2300 | ||
| 12 | GT3.8247 | 1200 | 760 | 655*1255*2300 |
